1981 HONDA NC50 EXPRESS- Customer Bike, Finished

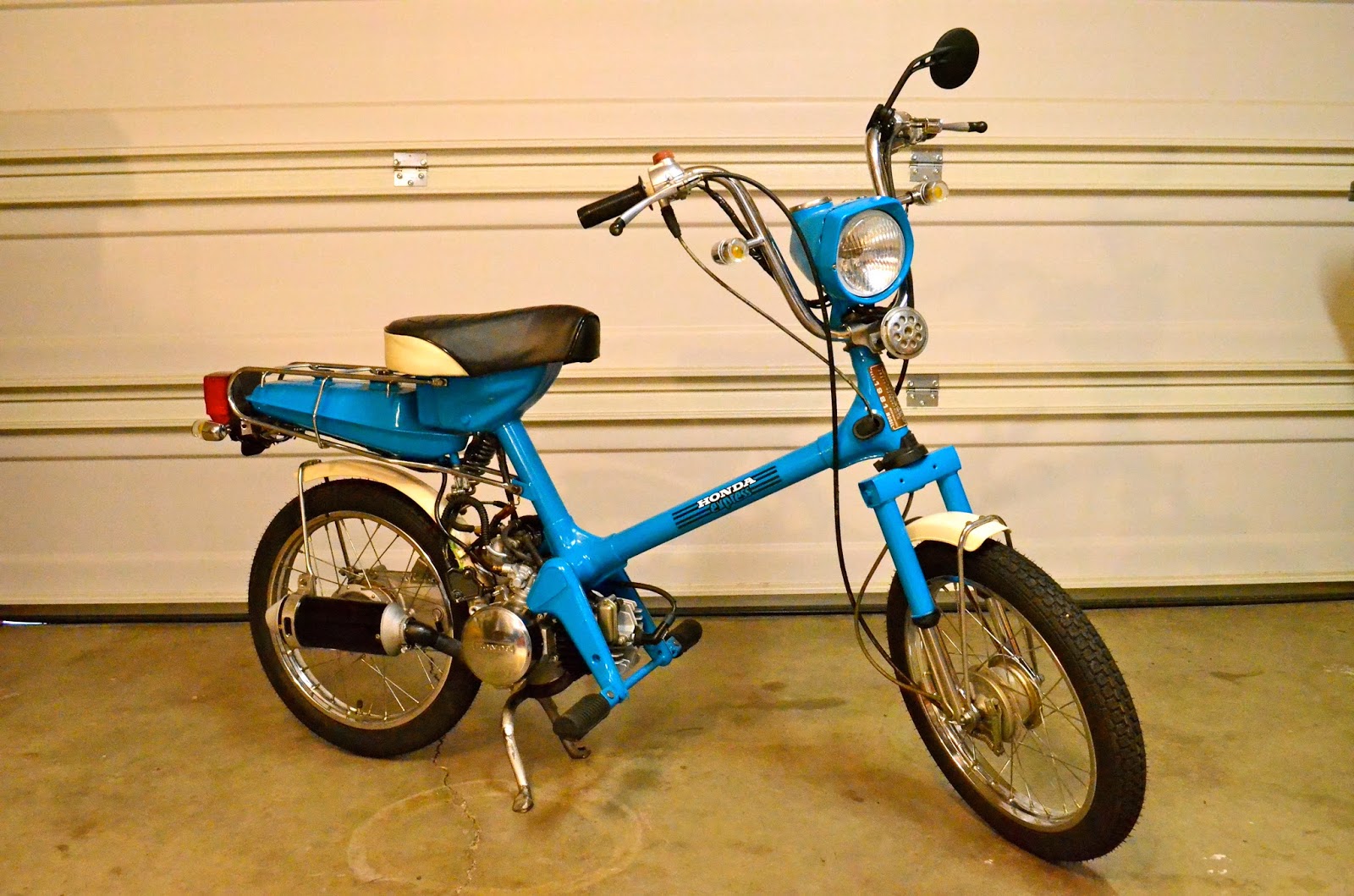

1981 HONDA NC50 EXPRESS- CUSTOMER BIKE

Another bike saved from the trash heap.... even if it is a scooter.
This little two-strokin' ground pounder is sure to turn some heads. This bike was brought in by a pretty little lady who just wanted something cool to cruise around town on. The request from the customer was "get it running right and make her look pretty". After a much needed refinish and a lot of tinkering, we think we gave her exactly what she wanted.

Technical Specs:
　
Make/Model                  Honda NC50 EXPRESS

Year                                                             1981

Engine                 Air cooled, Single, Two-Stroke

Capacity                                                     49 cc

Ignition / Starting                                  CDI, Kick

Transmission / Drive            Auto, Single Speed

Front Brakes                                              Drum

Rear Brakes                                               Drum

Front Tire                                                2.25-14

Rear Tire                                                2.25-14

Top Speed                                             38 MPH (Thats up from 27, and at 7000ft no less!)


Build Specs:


Frame, Seat, and Fenders- New coat of 'Planet Blue' paint, fresh set of decals. New seat cover. Added custom fenders front and back

Intake, Exhaust, and Fuel- Stock airbox and brackets removed. New pod filter and breather filter. Custom exhaust pipe fitted with a dirt bike muffler. New petcock and inline fuel filter. Rebuilt carb and reworked jetting. Sealed fuel tank and oil tank. New hoses throughout

Engine and Transmission- New head gasket, fresh rings. Cleaned and painted case and head.

Electrical- New 6v battery, cleaned up and reworked wiring harness


Controls and Gauges- Rebuilt Speedo, new cables all around. New mini turn signals front and back. New mirror

Brakes and Tires- New brake pads front and rear, fresh Kenda rubber
